Mixed Water Series
ST-1100
Product details

INTELLIGENT TEMPERATURE CONTROL INTEGRATED SYSTEMS (APPS)

Product Features

Intelligent: App remote control; Full intelligent operation
Safety: Low temperature, pressure loss protection; leakage alarm
Health: Avoid volatile formaldehyde due to high temperature
Comfort: Household control, constant temperature and comfort
Energy saving: Proportional adjustment, energy saving 15%

How it works

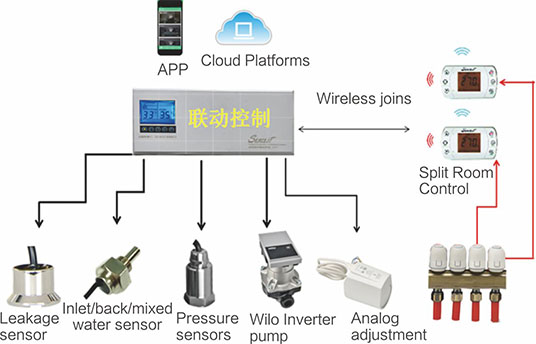

Lntelligent system linkage diagram

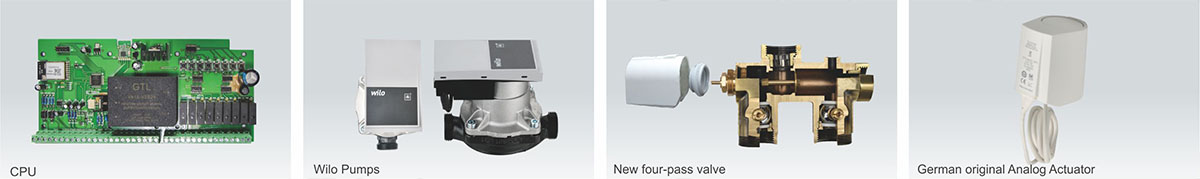

Core Component

CPU Features

1.Internet + Cloud Platform + intelligent control system, at the same time can achieve remote operation of users;
2.Microcomputer, inverter pump and actuator highly integrated design, intelligent operation, real-time mastery;
3.Intelligent temperature control integrated system contains temperature sensor, pressure sensor, leakage sensor, water pump fault feedback system, through the linkage between the sensor and actuator, the system automatically runs, so as to achieve accurate temperature control effect.
4.Temperature, pressure, water pump, leakage fault signal will be in the app alarm alert users;
5.APP real-time display of inlet/backwater temperature, pipe network water temperature, pipe network pressure and room temperature;
6.Real-time monitoring of leakage, once the leakage system automatically shut down the pump and water, to avoid leakage accidents;

Wilo pumps Features

1.The use of German original imported Wilo Inverter ultra-mute water pump, no noise interference;
2.The system can automatically change the speed of the pump according to the different needs of users, high efficiency and energy saving, the highest power 45W, the maximum lift 7.0 meters;
3.The system can automatically adjust the speed of the pump when the environment has energy demand, the pump in the low temperature state of high-speed rotation, rapid heating, temperature reached the set value after cutting into the automatic energy-saving mode;
4.The system has the function of automatic descaling, which solves the problem that the traditional water pump needs to be descaling regularly.

New four-pass valve Features

Four-way valve body using large stroke large flow design, in the case of low inlet temperature, small pressure, can accelerate circulation, auxiliary heating.



German original analog actuator Features

1.6.5mm Big Trip

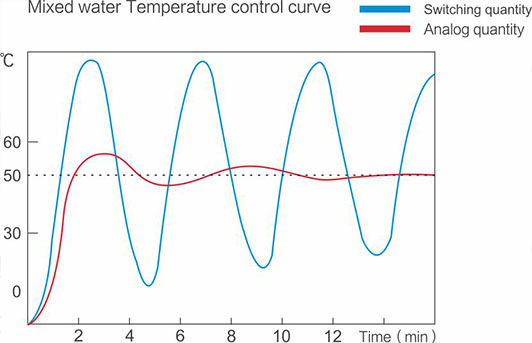

2.Analog Control Formation
3.Stable temperature control, high temperature control accuracy
